Anode Rod Replacement - Step By Step Guide

The CORRO-PROTEC Powered Anode Rod design makes the product very easy and safe to install on all type of hot water tank.

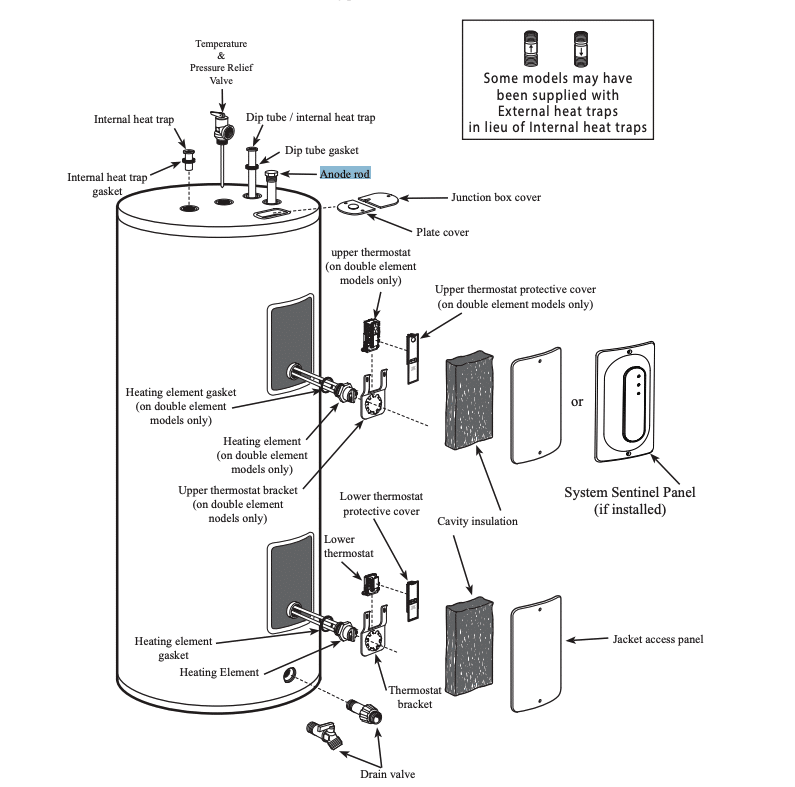

Are you able to see the anode rod on the top of your tank?

CORRO-PROTEC Powered Anode Rod Unit

Regular Hot Water Tank

If you prefer to have the complete installation guide, click here:    ENGLISH   -   FRANÇAIS   -   ESPAÑOLA

You can click on the images to enlarge them.

1.

Prepare

  • Turn off electrical power supply
  • Turn off water supply
  • Remove the water pressure from the tank

2.

Replace

  • Remove the magnesium anode
  • Install Teflon tape on the lower portion of the Corro-Protec
  • Insert and screw the Corro-Protec

3.

Plug It

  • Install the ground on the hot water tank
  • Connect the Corro-Protec Anode on the rectifier
  • Connect the rectifier

Built-In Anode Hot Water Tank

If you prefer to have the complete installation guide, click here:    ENGLISH   -   FRANÇAIS   -   ESPAÑOLA

You can click on the images to enlarge them.

1.

Prepare

  • Turn off electrical power supply
  • Turn off water supply
  • Remove the water pressure from the tank

2.

Replace

  • Unscrew the hot water outlet pipe
  • Put a Tee adapter and a 90 degree elbow fitting on the water heater outlet
  • Remove the safety valve from its original location and install it on the top of the adapter and connect the outlet to the other end.

3.

Install

  • Install Teflon tape on the lower portion of the Corro-Protec
  • Insert and screw the Corro-Protec in the hole in which the safety valve was.

4.

Plug It

  • Install the ground on the hot water tank
  • Connect the Corro-Protec Anode on the rectifier
  • Connect the rectifier
