Water Heater Anode Rod 4.88/5
Powered anode rod for residential water heater aiming to stop corrosion inside the tank, get rid of sulfur smell and reduce limescale build-up.
Powered anode rod
Advantages & Benefits
24-Hour Sulfur Smell Elimination
Get rid of sulfur / rotten egg smell in hot water within 24-hours by neutralizing the SRB (sulfur-reducing bacteria).
Stops Tank Corrosion
Provides a permanent corrosion protection for the internal part of your water heater to extend its life expectancy and avoid leaks.
Reduces Limescale Accumulation
Reduces limescale accumulation which will improve water heater efficiency and reduce energy costs related to heating the water since mineral residues aren’t accumulating.
Fits any tanks and brands

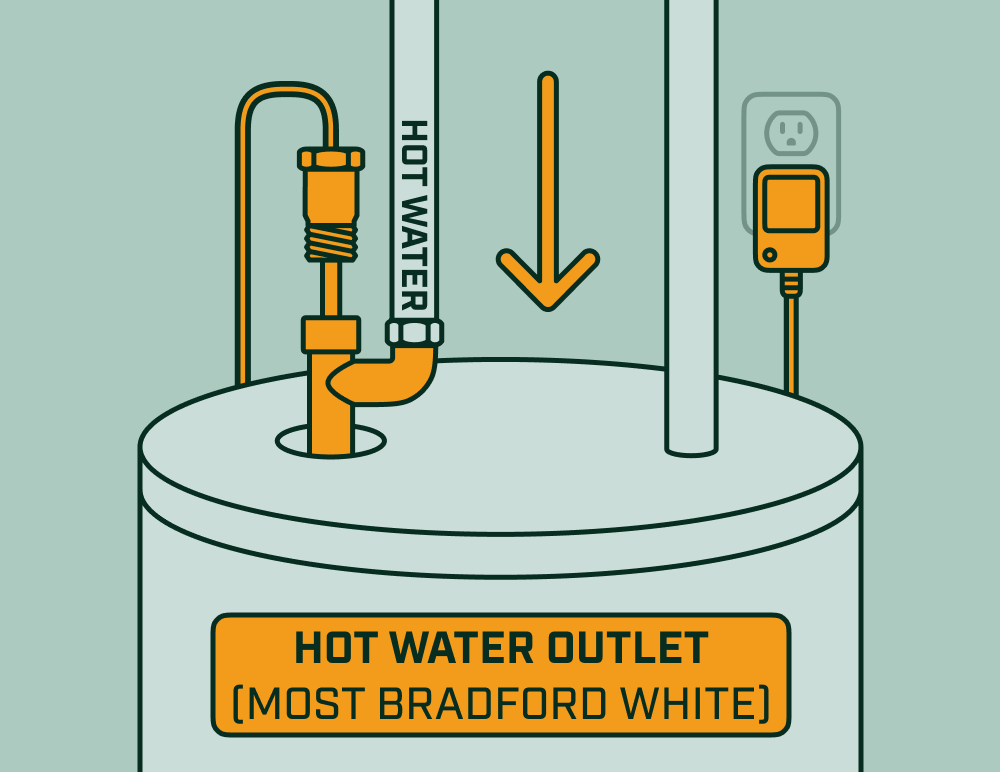

Can be installed in electric, gas, solar, hybrid, indirect, and geothermal water heaters, from 10 to 120 gallons. Bradford White and Bedarus tanks have their own specific model.
Common questions
Since the amount of current used by the anode will vary from region to region due to the hardness of the water, it is impossible to give an exact answer.
However, on average, the anode will use 10 kWh per year. If we take the average price of electricity in the United States, the cost to run the anode 24 hours a day all year round is $ 1.36 or about a third of a penny per day.
Our anode is 12 inches tall. This is about what you need.
For ease of installation, the Corro-Protec comes equipped with a power supply cord that spans an ample length of 12 feet, offering flexibility in its placement..
Absolutely, you can use the Corro-Protec powered anode rod with any water treatment system safely. No matter what type of water softener system you’re using, the Corro-Protec rod will adjust itself automatically to work effectively with your water.
![](https://www.corroprotec.com/app/uploads/2022/07/corro-seal-certification-500x501.png)
These Corro-Protec’s anode rods are tested and certified by WQA against SF/ANSI/CAN 372 (Lead-Free): 96386, 96387 & 96388.
Box content
- 1x Corro-Protec powered anode rod made of titanium for long-term durability and efficiency
- 1x Power supply with 12-foot cord
- 1x 15-minute installation guide
- 1x Corro-Protec powered anode rod made of titanium for long-term durability and efficiency
- 1x Power supply with 12-foot cord
- 1x 15-minute installation guide
- 1x Installation fittings (elbow, nipple & tee)
Technical Details
Manufacturer | Corro-Protec |
Part number | 96386 |
UPC code | 094922963864 |
Product Dimensions | 12 x 2 x 2 inches |
Item Weight | 0.5 Kg |
Country of origin | Canada |
Rod material | Titanium + Mixed Metal Oxide |
Thread | 3/4” NPT |
Current requirement | Regular 110v socket |
Output voltage | 12V |
Output amperes | 0.005A |
Manufacturer | Corro-Protec |
Part number | 96387 |
UPC Code | 094922963871 |
Product Dimensions | 12 x 2 x 2 inches |
Item Weight | 0.5 Kg |
Country of origin | Canada |
Rod material | Titanium + Mixed Metal Oxide |
Thread | 3/4” NPT |
Current requirement | Regular 110v socket |
Output voltage | 12V |
Output amperes | 0.015A |
Manufacturer | Corro-Protec |
Part number | 96388 |
UPC Code | 094922963888 |
Product Dimensions | 19 x 2 x 2 inches |
Item Weight | 0.6 Kg |
Country of origin | Canada |
Rod material | Titanium + Mixed Metal Oxide |
Thread | 3/4” NPT |
Current requirement | Regular 110v socket |
Output voltage | 12V |
Output amperes | 0.015A |
Manufacturer | Corro-Protec |
Part number | 96383 |
UPC Code | 094922963833 |
Product Dimensions | 12 x 2 x 2 inches |
Item Weight | 1 Kg |
Country of origin | Canada |
Rod material | Titanium + Mixed Metal Oxide |
Thread | 3/4” NPT |
Parts Included | All fittings needed (Stainless Steel 304) |
Current requirement | Regular 110v socket |
Output voltage | 12V |
Output amperes | 0.015A |
Manufacturer | Corro-Protec |
Part number | 96382 |
Product Dimensions | 12 x 2 x 2 inches |
Item Weight | 1 Kg |
Country of origin | Canada |
Rod material | Titanium + Mixed Metal Oxide |
Thread | 1” NPT |
Parts Included | All fittings needed (Stainless Steel 304) |
Current requirement | Regular 110v socket |
Output voltage | 12V |
Output amperes | 0.015A |
Reviews
Need Assistance?
Our technical support team created great step-by-step installation guides. They are also ready to answer all your questions and help you solve any problems you are experiencing.
*Bradford White is a registered trademark of Bradford White Corporation. Corro-Protec is not affiliated with, endorsed by, or sponsored by Bradford White Corporation.
